BBT Vacuum extruded clay brick block tile making machine with tunnel kiln project brick equipment

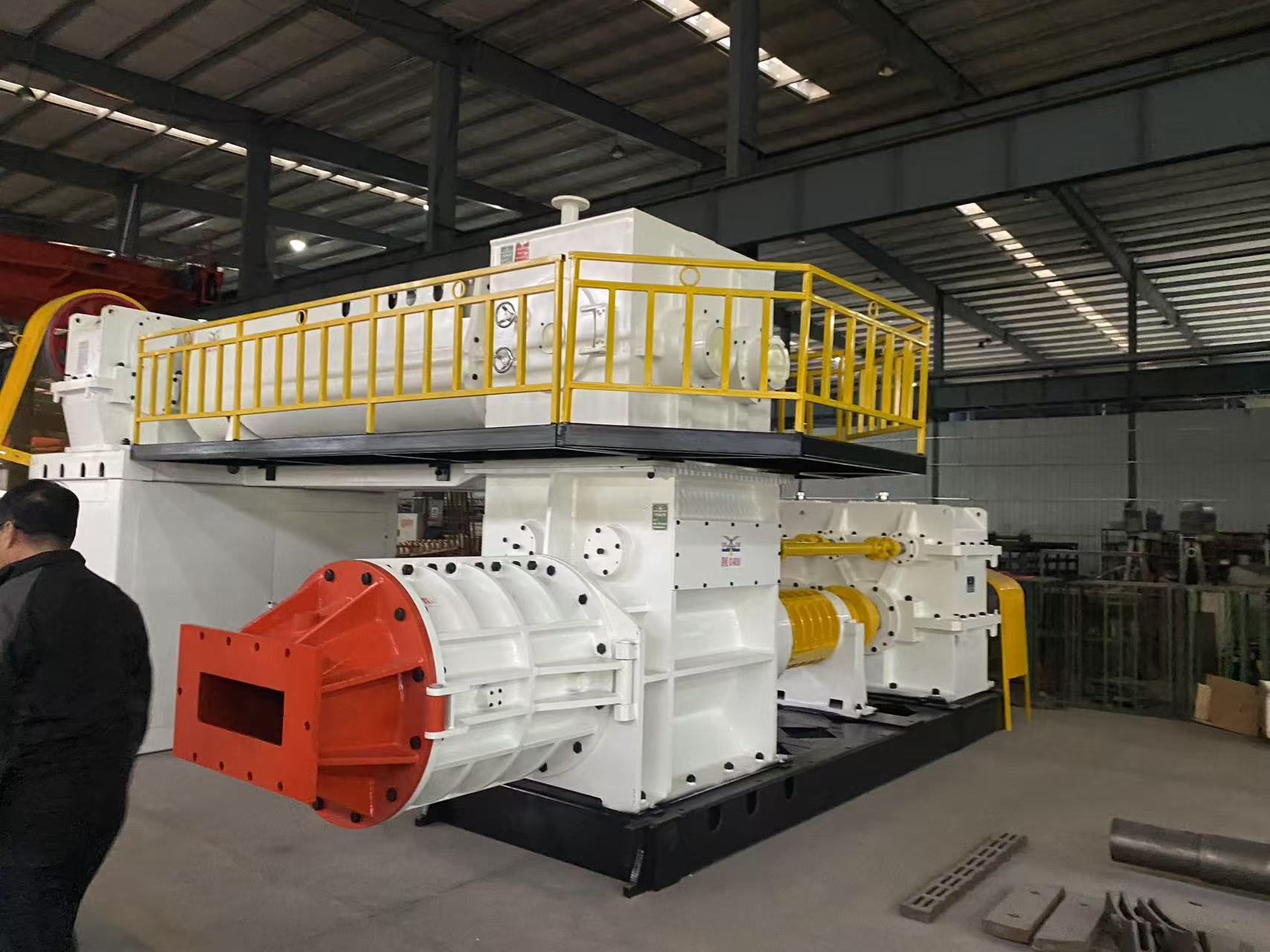

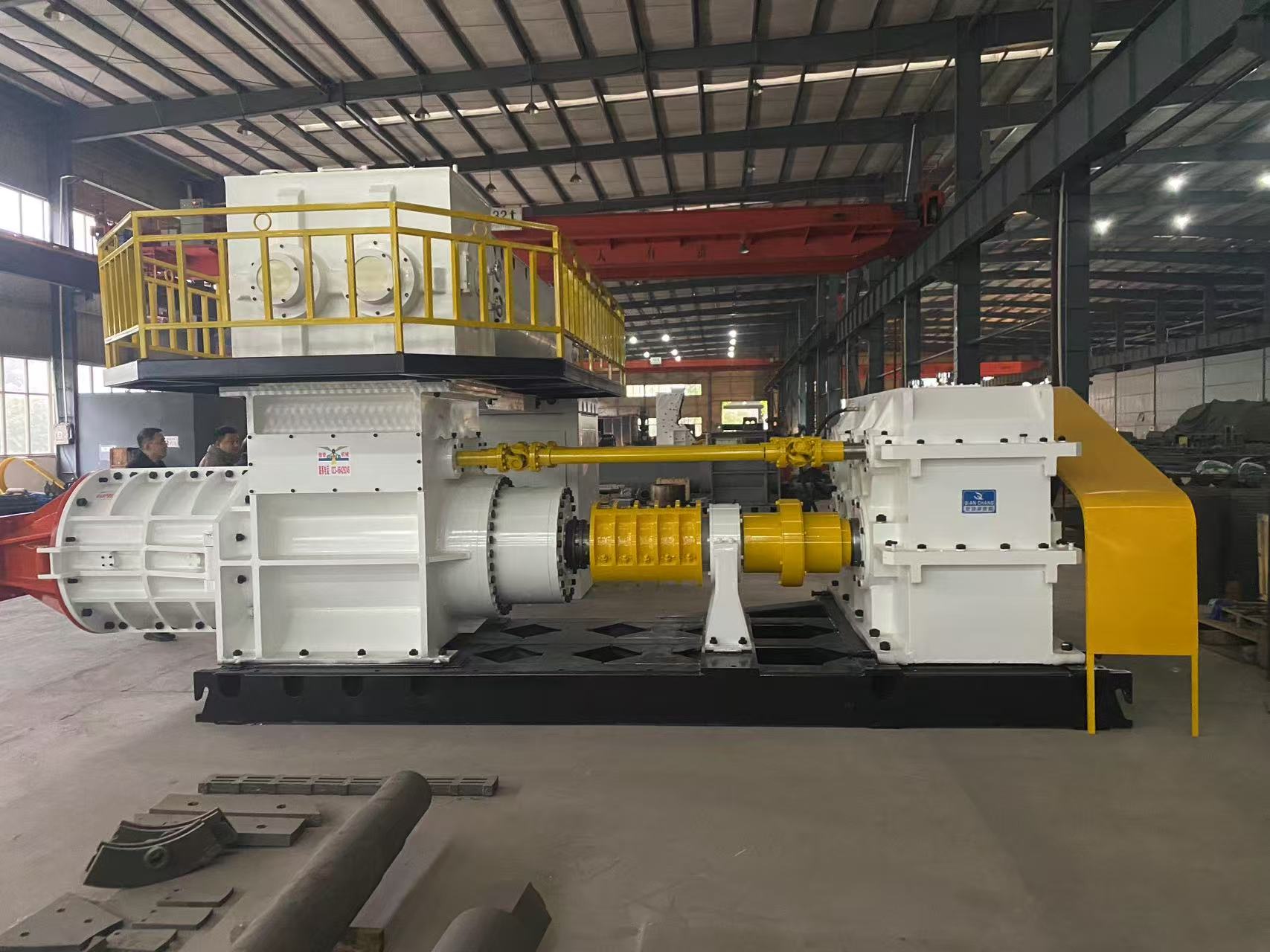

Vacuum extruder EV45 EV50 EV55 EV60 EV775

The machine is suitable for continuous extruding of wet clay and is a key functional machine in the molding section of brick production line.

The mud bar extruded by the equipment has a smooth and compact surface, good quality, large extrusion output, easy operation, stable operation and good reliability.

The machine can produce solid brick, hollow brick, porous brick, hollow block and other brick.

The machine is composed of upper mixing part, vacuuming part and lower extruding part.

The extruder body is welded with high quality steel plate, and the residual stress inside the parts is removed after aging treatment, which increases the hardness and strength. The structure design of the extruder is reasonable, the machine body is solid, stable, reliable and durable. Low energy consumption, high production efficiency and easy maintenance.

The extruder can be equipped with digital automatic monitoring system to provide a strong guarantee for the continuous and stable work of the machine.

EV50A Brick block vacuum extruder technical parameters:

Production capacity:10000-13000pcs/hr

Extrusion pressure: ≤3.0Mpa

Vacuum degree: ≤-0.092

Rotate speed of extruding shaft :25rpm

Diameter of reamer:

Material transporting part: 500mm

Extruding part:450mm

Power: 160+55kw

Weight: 17500kg

Vacuum extruder main technical parameters:

BBT supply red clay brick making project machinery and equipment

key equipments:
TWPM Wet pan mill
TWJH filter mixer
GD belt type of box feeder / TCNL Chain steel type of box feeder
TRA double tooth roller crusher
MDE double shaft mixer

QTQP-3G brick cutter

GS fine grinder

BBT Vacuum extruded clay brick block tile making machine with tunnel kiln project brick equipment

BBT focuses on the core business development by concentrating on the professionalization strategy. We devote ourselves to integrating technical solutions of production line process design, thermal design, equipment R&D, trade,mechanical and electrical equipment installation, international engineering, project consultancy, technical service for producing sintered wall materials of fired perforated brick, paving block, facing brick, hollow block, insulating block, wall board.

BBT takes the market demand as guidance, creates the value for the customer as objective and sincerely provides:

1. Process design of directing setting, two times setting and firing technology(BBT masters core technology);

2. Wall boards production process technology;

3. Prefabricated walls production process technology;

4. Key equipment in raw materials treatment process: wet pan mill, high speed fine-pulverized roller;

5. Key equipment in molding process: extruding type mixer and filter mixer;

6. Equipment R&D and manufacturing of fully automatic cutting, marshalling, brick stacking, loading and unloading;

7. Equipment R&D and manufacturing of thermal running, thermal monitor and control system;

8. All types of fuel combustion and control systems;

9. Management services of brick & tile production technology.

With the love of brick, BBT will continue to take unremitting efforts to provide our clients with high standard brick making production line through continuous innovation and strict industrial chain development and management.
